Description
Product Parameters
|
NPN NO
|
CR18XTCN05DNO
|
PNP NO
|
CR18XTCN05DPO
|
|
NPN NC
|
CR18XTCN05DNC
|
PNP NC
|
CR18XTCN05DPC
|
|
NPN NO+NC
|
CR18XTCN05DNR
|
PNP NO+NC
|
CR18XTCN05DPR
|
|
Specifications
|
|||
|
Installation type
|
Non-flush（Contact use）
|
Circuit protection
|
Short circuit protection, overload protection,
|
|
Detection distance
|
5mm
|
reverse polarity protection
|
|
|
Output type
|
NO/NC（Depending on model）
|
Ambient temperature
|
-25℃…70℃
|
|
Supply voltage
|
10…30 VDC
|
Environment humidity
|
35…95%RH
|
|
Standard target
|
The inside diameter of＞20mmMetal ring
|
High pressure resistant
|
1000V/AC 50/60Hz 60s
|
|
Sensitivity
|
Adjustable potentiometer
|
Insulation resistance
|
≥50MΩ（500VDC）
|
|
Switch point offset
|
≤±20%
|
Vibration resistant
|
Complex amplitude1.5mm 10…50Hz
|
|
Hysteresis range
|
3…20%
|
（2 hours each in X, Y, and Z directions）
|
|
|
Repetitive error
|
≤5%
|

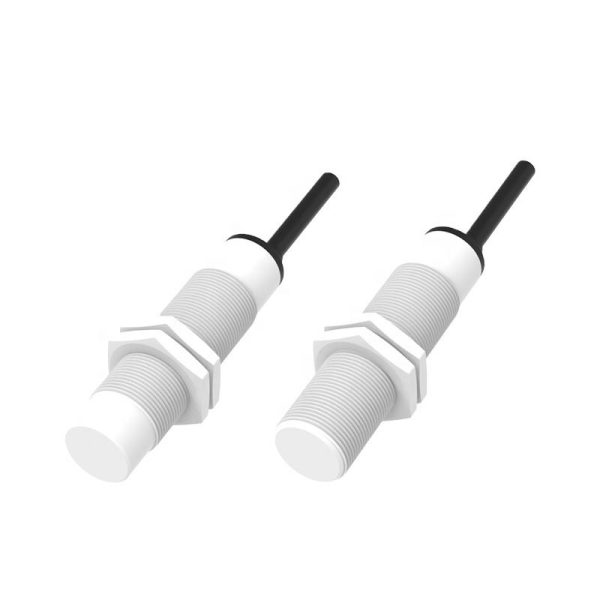

Shape specification
|
M18*80mm
|
|
Load current
|
≤200mA
|
Protection degree
|
IP67
|
|
Residual voltage
|
≤2.5V
|
Housing material
|
PTEE
|
|
Consumption current
|
≤15mA
|
Connection type
|
2m PVC Cable
|
|
Output indication
|
Yellow LED
|
||
